Product Information
Overview

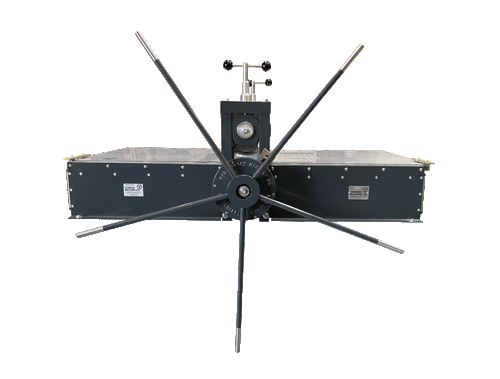

The Conrad E-31 etching press brings the pressure and precision of a floor model press to your table top. With a vast printing area of 30.5" x 54", the E-31 encourages you to pull larger prints.
We left nothing to chance with the E-31 etching press design. Upgrading bearings, increasing the size of the rollers, and including the legandary Conrad planetary geared reduction drive, the E-31 feels comfortable with the demands of high pressure work like etching/intaglio, photo gravure, and solar plates. The larger Conrad S-2 geared planetary drive coupled with a large spoked wheel provides a natural, ergonomic printing experience on the heaviest pressure settings.
The 30.5" x 54" bed gluides gracefully through the press, riding on 8 custom reinforced support wheels allowing the printmaker to print lighter pressure work like monotypes, linocuts, wood blocks, letterpress type, and other relief work with mastery.
Printing Capabilities
The Conrad E-31 Etching Press can easily print the following media:
- Monotypes
- Wood blocks
- Linocuts (mounted & unmounted)
- Type high blocks
- Letterpress
- Drypoints
- Engravings
- Intaglio/Etchings (copper, zinc, etc.)
- Photogravure/Photopolymer
- Caligraphs
- Plate lithography
Configurations
The Conrad E-31 Etching Press comes with the following configuration:
- Lower roll driven
- Conrad geared reduction drive with open spoked wheel
- 30.5" x 54" composite bed plate
Options
Optional press configurations include:
- Micro-gauges
- Protective bed cover and registration grid
- Enclosed wheel (Captain's Wheel)
- Oversized 8" or 10" upper roll
- Chrome plated upper roll
- Aluminum or steel bed
Press Accessories
Optional accessories for your new etching press include:
E-31 Specifications
Size and printing specifications for the Conrad E-31 Tabletop press.
|
Overall Press Dimensions: |
40.5” x 54.25” x 18.5” |
|
Press Frame Dimensions: |
34.5" x 54.25" |
|
Maximum Print Area Size: |
30.5" x 54" |
|
Bed Height of Frame (Working Height): |
8" |
|
Bed Height (Working Height) on Stand/Workbench: |
37.5" |
|
Stand/Workbench Height: |
29.5" |
|
Open Spoked Wheel: |
23" Spokes (Total of 48" Diameter Open Wheel) |
|
Enclosed Star Wheel (Captain's Wheel): |
48” Diameter |
|
Standard Upper Roll: |
7.5” Diameter Tubular Steel |
|
Standard Lower Roll: |
4.5” Diameter Solid Steel |
|
Oversized Upper Roll: |
8" or 10" Diameter Tubular Steel |
|
Composite Bed Dimensions: |
30.5” x 54” x 3/4” |
|
Aluminum Bed Dimensions: |
30.5” x 54” x 3/4” |
|
Steel Bed Dimensions: |
30.5” x 54” x 3/4” |
|
Press Weights: |
E-31 with composite bed: 700 lbs. E-31 with aluminum bed: 760 lbs. E-31 with steel bed: 980 lbs. |
Press Warranty
All Conrad Machine Co. Presses come with the printmaking industry's best 25 Year Warranty. We here at Conrad Machine Co. believe in our products and workmanship, so much so, that we will repair or replace any defects in materials or workmanship for the first 25 years of the life of your printmaking press.
