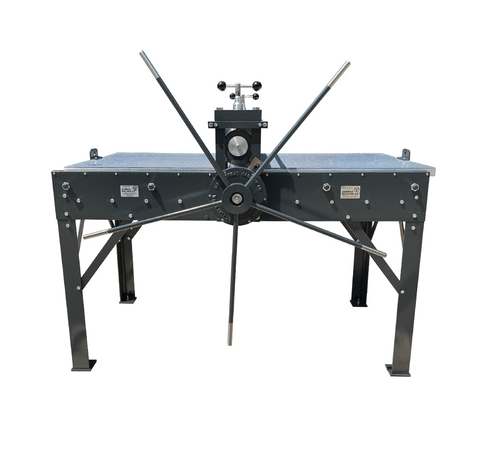

Conrad E-24 Floor Model Etching Press (24" x 48")

Conrad

Total Price: $8,512.00

Deposit Due Today: $2,128.00

Balance on Shipment: $6,384.00

(No reviews yet) Write a Review
SKU:
e24fm
Availability:
Usually ships in 6-8 weeks based on availability.
Deposit Percentage:
25
Adding to cart… The item has been added

Product Information

Overview

The Conrad E-24 floor model etching press is the ideal press for printmakers who want the stregnth and durability of a floor model press but don't have a large studio. With a print area of 24" x 48", the E-24 is capable of printing larger paper sheets with the full options of a professional floor model press.

The acclaimed E-24 floor model press design features large sealed bearings, impressive roll sizes, and the renowned Conrad planetary geared reduction drive. With it's solid steel or aluminim bed, this floor model press is designed for the highest pressure prints like etching/intaglio, photo gravure, and solar plates. The Conrad S-2 geared planetary drive can be equipped with either spokes or a captain's wheel for an effortless printing experience even under the heaviest pressure settings. Other presses with wood beds or thin walled tubular rolls can't say the same.

The 24" x 48" bed gluides through the press on 8 independantly adjustable support wheels allowing you to print lighter pressure work like monotypes, linocuts, wood blocks, letterpress type, and other relief techniques without resistance.

Printing Capabilities

The Conrad E-24 Floor Model Etching Press can easily print the following media:

  • Monotypes
  • Wood blocks
  • Linocuts (mounted & unmounted)
  • Type high blocks
  • Letterpress
  • Drypoints
  • Engravings
  • Intaglio/Etchings (copper, zinc, etc.)
  • Photogravure/Photopolymer
  • Caligraphs
  • Plate lithography

Configurations

The Conrad E-24 Floor Model Etching Press comes with the following configuration:

  • Lower roll driven
  • Conrad geared reduction drive with open spoked wheel
  • 24" x 48" precision ground steel bed plate

Options

Optional press configurations include:

Press Accessories

Optional accessories for your new floor model etching press include:

E-24 Floor Model Specifications

Size and printing specifications for the Conrad E-24 floor model press.

Overall Press Dimensions:

35”W x 48”L x 51”H

Press Frame Dimensions:

28" x 48"

Maximum Print Area Size:

24" x 48"

Bed Height of Frame (Working Height):

36"

Open Spoked Wheel:

23" Spokes (Total of 48" Diameter Open Wheel)

Enclosed Star Wheel (Captain's Wheel):

48” Diameter

Standard Upper Roll:

7” Diameter Soild Steel

Standard Lower Roll:

4.5” Diameter Solid Steel

Oversized Upper Roll:

8" or 10" Diameter Tubular Steel

Aluminum Bed Dimensions:

24” x 48” x 1”

Steel Bed Dimensions:

24” x 48” x 1”

Press Weights:

E-24 with aluminum bed: 1,000 lbs.

E-24 with steel bed: 1,278 lbs.

Press Warranty

All Conrad Machine Co. Presses come with the printmaking industry's best 25 Year Warranty. We here at Conrad Machine Co. believe in our products and workmanship, so much so, that we will repair or replace any defects in materials or workmanship for the first 25 years of the life of your printmaking press.
