Product Information
Overview

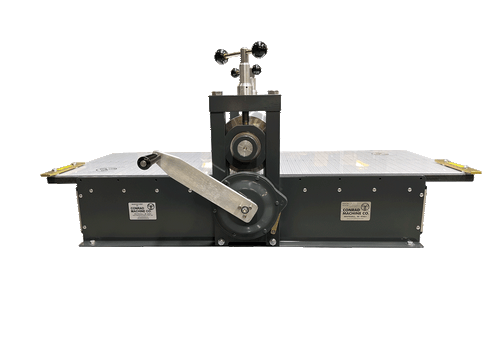

The Conrad E-18 is robust professional-grade table top printmaking press for artists who want the options and performance of a larger etching press without taking up a large footprint in their studio. With a generous printing area of 18" x 44", the E-18 can easily handle larger prints and paper sizes.
The E-18 press's unique design was created specifically for the demands of high pressure work like etching/intaglio, photo gravure, and solar plates. The Conrad geared planetary drive gives the printmaker a smooth, ergonomic printing experience with a solid polished aluminum hand crank for easy printing under extreme heavy pressure.
The 18" x 44" bed gluides effortlessly across 8 custom made support wheels to make printing lighter pressure work like monotypes, linocuts, wood blocks, letterpress type, and other relief work a breeze.
Printing Capabilities
The Conrad E-18 Etching Press can easily print the following media:
- Monotypes
- Wood blocks
- Linocuts (mounted & unmounted)
- Type high blocks
- Letterpress
- Drypoints
- Engravings
- Intaglio/Etchings (copper, zinc, etc.)
- Photogravure/Photopolymer
- Caligraphs
- Plate lithography
Configurations
The Conrad E-18 Etching Press comes with the following configuration:
- Lower roll driven
- Conrad geared reduction drive with polished aluminum hand crank
- 18" x 44" composite bed plate
Options
Optional press configurations include:
- Micro-gauges
- Protective bed cover and registration grid
- Open spoked wheel in place of hand crank
- Enclosed wheel (Captain's Wheel)
- Oversized 6" solid aluminum upper roll
- Aluminum or steel bed
Press Accessories
Optional accessories for your new etching press include:
E-18 Specifications
Size and printing specifications for the Conrad E-18 Tabletop press.
|
Overall Press Dimensions: |
25.75” x 36.75” x 18.25” |
|
Press Frame Dimensions: |
21.75" x 36.75" |
|
Maximum Print Area Size: |
18" x 44" |
|
Bed Height of Frame (Working Height): |
7.25" |
|
Bed Height (Working Height) on Stand/Workbench: |
36.75" |
|
Stand/Workbench Height: |
29.5" |
|
Geared Reduction Drive: |
Geared Reduction Drive with 10" Polished Aluminum Handle |
|
Enclosed Star Wheel (Captain's Wheel): |
24” Diameter |
|
Open Spoked Wheel (in place of hand crank): |
12" Spokes (Total of 25" Diameter Open Wheel) |
|
Standard Upper Roll: |
4.5” Diameter Tubular Steel |
|
Standard Lower Roll: |
3.5” Diameter Solid Steel |
|
Oversized Upper Roll: |
6" Diameter Solid Aluminum |
|
Composite Bed Dimensions: |
18” x 44” x 3/4” |
|
Aluminum Bed Dimensions: |
18” x 42” x 3/4” |
|
Steel Bed Dimensions: |
18” x 36” x 3/4” |
|
Press Weights: |
E-18 with composite bed: 228 lbs. E-18 with aluminum bed: 253 lbs. E-18 with steel bed: 378 lbs. |
Press Warranty
All Conrad Machine Co. Presses come with the printmaking industry's best 25 Year Warranty. We here at Conrad Machine Co. believe in our products and workmanship, so much so, that we will repair or replace any defects in materials or workmanship for the first 25 years of the life of your printmaking press.
